Level Step-Through Commuter Ebike

Size Guide

Size
Color
Earth Grey
Rose Gold
FREE SHIPPING
Pedal assist and throttle

THROTTLE ENABLED

Both pedal assist & throttle options

40 miles range per charge

Avg. 40 Miles

Range Per Charge

750W (peak) 500W (sustained) brushless hub motor

750W

750W Peak Motor

Folding frame for easy storage and transportation

Rack + Fenders

Carry the essentials

Suspension

Suspension Fork for Comfort

Big LCD Display

Backlit Easy Read LCD Screen

Best Step-Through Commuter Ebike | NEW Level Step-Through Commuter Electric Bicycle from Aventon Bikes

We’re proud to introduce the newest bike to the Aventon lineup, the Level Step-Through, already hailed the ultimate urban commuter ebike by Electric Bike Review in its traditional frame. The Level Step-Through is engineered for riders who want to escape from their cars but still want to keep up with traffic on their work or school commute. It’s built with the same proven motor technology as our award wining Pace 500 electric bike but with geometry and convenience features for urban riders, in a more comfortable Step-Through frame. With peppy handling, a suspension fork, and an extended battery, the Level Step-Through Commuter Ebike can take everything that you throw at it.

“Powerful and feature-rich Class 3 commuting electric bike, competitively priced with impressive quality components throughout”
Click again to read full review of our new Aventon Level Commuter Ebike Click again to read full review of our new Aventon Level Commuter Ebike

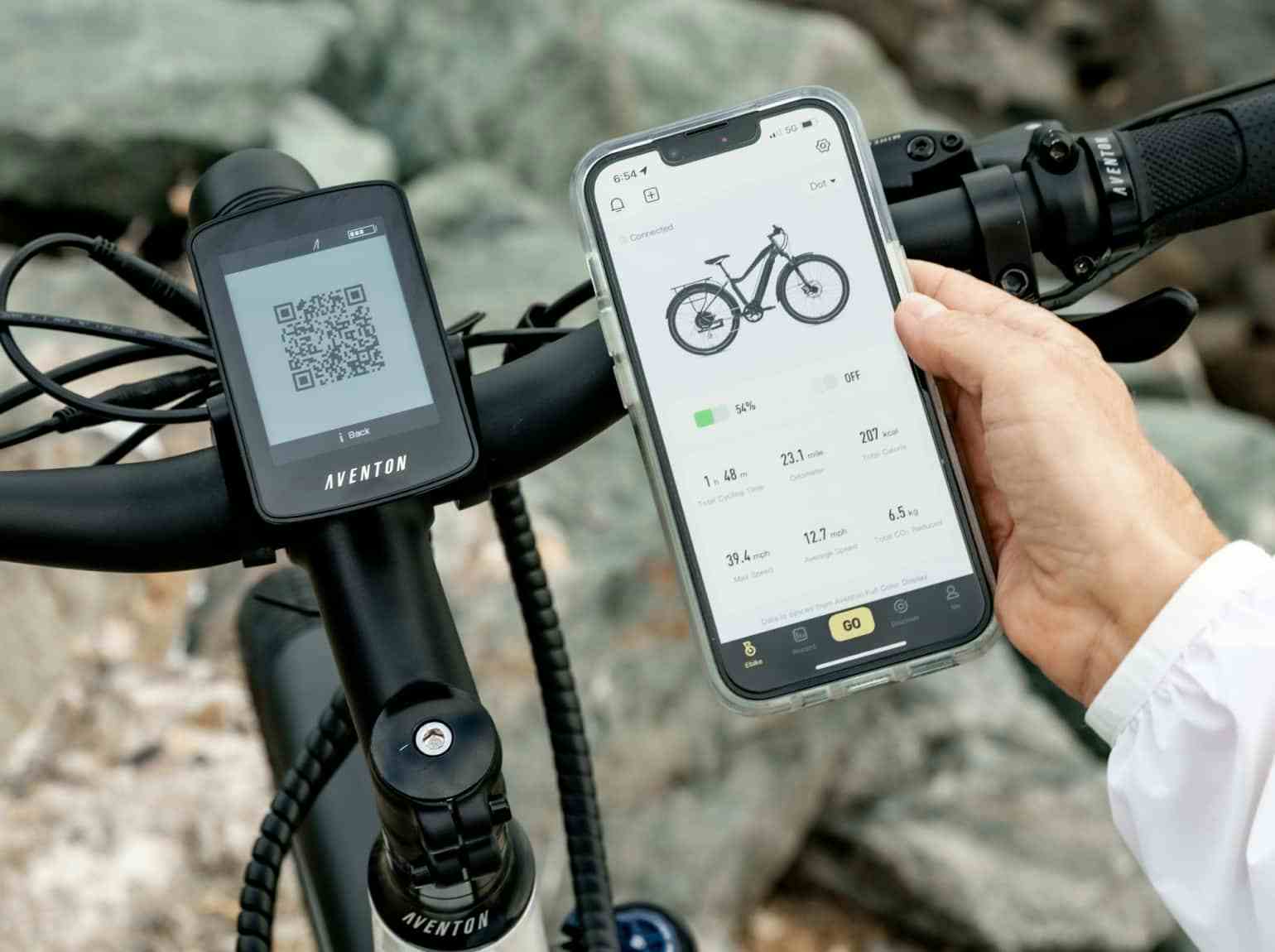

Large Backlit LCD Display

Monitor your charge level, speed, distance, and pedal assist level right on the handlebar of your commuter ebike. There's even a backlight for night rides.



Suspension Fork

The Level suspension fork has 75mm of travel to take the edge off of rough pavement. It uses an upgraded thru-axle for enhanced steering control and allows the front wheel to be installed and removed with nothing more than a hex key.



Go Anywhere

Level Commuter Ebike features 5 Pedal Assist settings so you can choose how much help you want. Or keep up with traffic using the throttle and skip pedaling entirely.



Rack & Fenders

With the included rear rack and fenders the Level ebike can take you and your belongings wherever you please.

Integrated, Extended Battery

Level's stealthy and removable battery packs a big 672Wh capacity for a full day's commuting without charging.

Step-Through Frame

Easy to mount and dismount, even for shorter riders or those with poor flexibility.

Find My Size

Level comes in 2 sizes to suit almost all adults and teens.

S/M

4'11" - 5'7"

M/L

5'8"- 6'2"

Full Geometry Chart

FRAME SIZE Small Medium
Height 4'11" - 5'7" 5'8" - 6'2"
A | Effective Top Tube Length 572mm 612mm
B | Seat Tube Length, Center to Top 400mm 480mm
C | Standover Height 621mm 621mm
D | Stack 596mm 605mm
E | Reach 372mm 404mm
F | Head Tube Angle 70° 70°
G | Seat Tube Angle 69° 68.5°
H | Fork Offset 44mm 44mm
I | BB Drop 50mm 50mm
J | Wheelbase 1095mm 1130mm
K | Chainstay 480mm 480mm
L | Head Tube Length 120mm 130mm

Specifications

ELECTRONICS

Motor
750W (Peak) 500W (Sustained), 48V Brushless Rear Hub Motor

Speed
Use the throttle to turn on the motor without needing to pedal

Pedal Assist
5 Levels

THROTTLE
Thumb Throttle on Handlebars

BATTERY
Removable Internal Lithium-ion 48V, 14Ah (672Wh) with Samsung Cells

CHARGER
48V 3 Amp Fast Charger, 4-5 Hour Charging

Display
M5 LCD Smart Easy Read Display with Backlight

Sensors
Cadence Sensor, Speed Sensor

Range
40 Miles Average

Frame and accessories

FRAME

Frame
6061 Double-Butted Aluminum Alloy with Internal Battery

Fork
Suntour Mobie A32, coil spring, thru-axle, 75mm travel, with lockout


Build

Weight
62lbs

Weight Limit
Maximum Rider Weight: 250lbs
Cargo Capacity: 50lbs

aCCESSORIES

Pedals
9/16" Alloy Platform

Kickstand
Included, Rear Mount

Drivetrain & Brakes

Bottom Bracket
Square Taper, Sealed

Cassette
Shimano Acera Cassette, 12-32T, 8 Speed

Chain
KMC Z Series, 8 Speed
Crankset
170mm w/ 46 T

Shift Lever
Shimano Acera 8 Speed, Rapidfire
Rear Deraileur
Shimano Acera 8 Speed

Brakes
Bengal Ares 3 Hydraulic Disc Brakes, 180mm Rotors

Wheels & Tires

Rim
Double Wall Aluminum 36h Front & Rear

Hubs
Joytech 36H Disc Thru-axle Front, Nutted Rear
Spokes
Black Stainless 12 Gauge

Tires
27.5" x 2.2" Kenda Kwick Drumlin, Ebike Rated, Reflective Sidewalls
Tubes
Butyl Rubber, Schrader Valve

Contact Points

Saddle
Aventon by Velo

Seat Clamp
Quick Release

Grips
Ergonomic Comfort
Seatpost
Forged Alloy, 27.2mm, 2-Bolt Clamp

Handlebars
Aluminum 31.8mm, 680mm
Stem
Threadless, 31.8mm, 7 Degree Rise

Headset
VP Sealed Bearing Headset

Additional Information





Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride or park your ebike in the rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.

Real World Range Testing

Aventon in the wild

Tag your photos #aventonbikes or upload your own on our community photos page

How to Build & Manuals

The assembly of the Level Step-through is identical to the Level Step-over shown in this video.

Owners Manual (PDF)

Quick Start Guide (PDF)
